Pay-Off Machine Suppliers

As a Pay-Off Machine manufacturer with over 50 years of engineering experience, CHENG I supplies a complete range of pay-off systems for wire drawing, descaling, and processing lines. Our pay-off machines are designed for low, medium, high carbon, and stainless steel wire, supporting continuous operation with advanced snarl detection and ergonomic loading. From overhead towers to rotary stands, we configure each unit to match your line speed, coil weight, and material handling requirements.

Our factory in Guangde, Anhui, China, combines precision assembly with strict quality control, ensuring reliable performance in demanding environments. We serve fastener, automotive, aerospace, steel wire, and cable industries worldwide, offering both standard models and custom-engineered solutions.

Our Pay-Off Machine Range

We offer 12 distinct pay-off configurations, each tailored to specific wire diameters, coil weights, and line speeds. The table below summarizes our main models and their typical applications.

Application Fit and Material Considerations

Our pay-off machines handle wire from 2.0 mm to 15 mm, covering low carbon, medium carbon, high carbon, and stainless steel. For overhead models, the pay-off speed depends on the model and tower height, with PWR series reaching up to 7.0 m/s. We design the wire guide cage to act as both a guide and a snarl detector, preventing wire breaks and tangles.

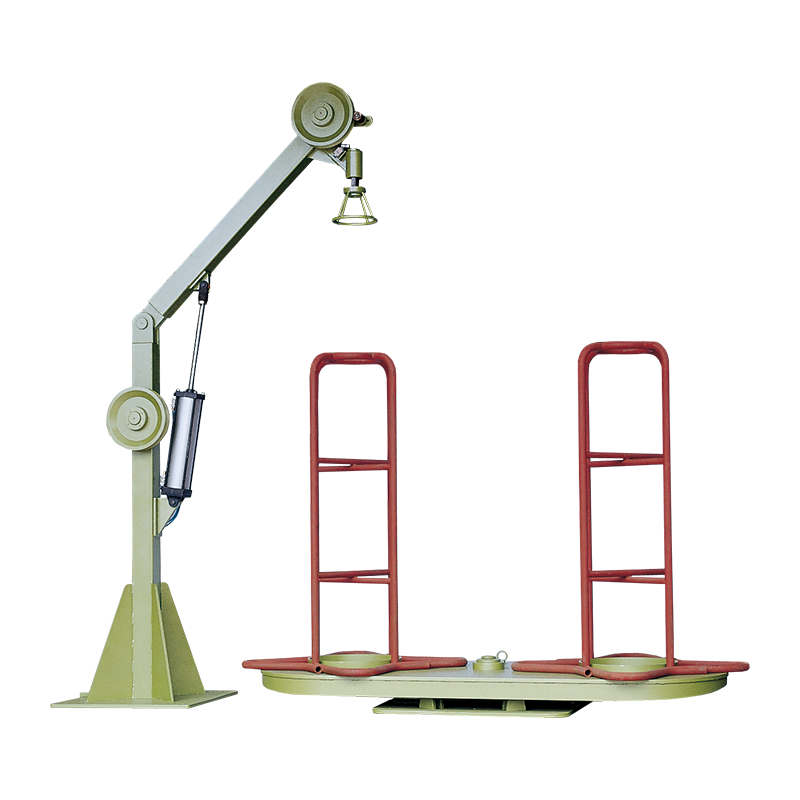

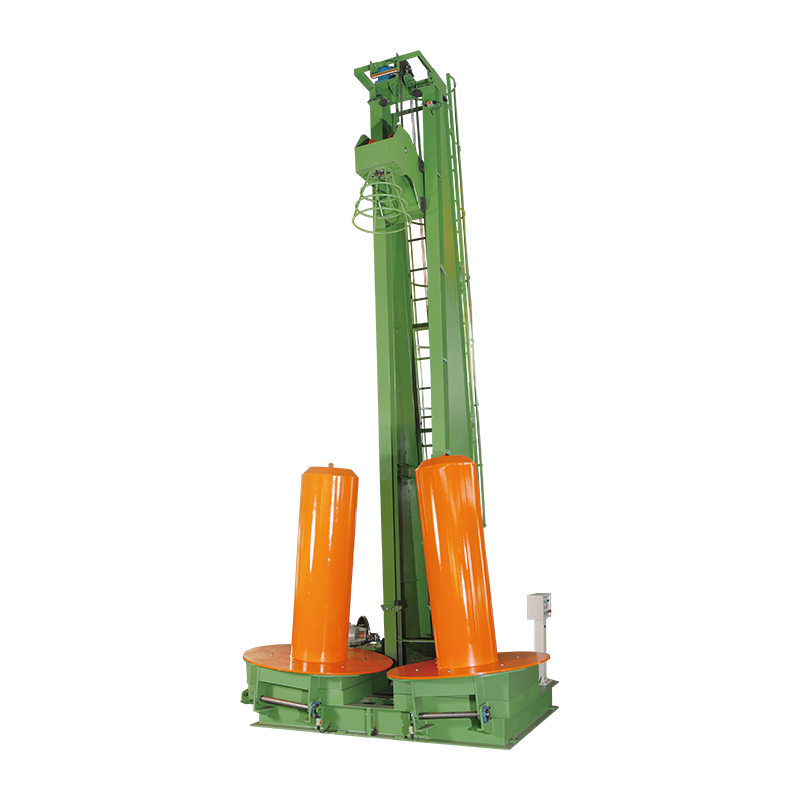

For continuous operations, two-position stands and towers allow coil head-to-tail butt welding, minimizing downtime. The tilting load tables and hydraulic systems reduce manual effort, improving operator ergonomics and safety.

Critical Specifications and Configuration

• Wire range: 2.0–15 mm depending on model
• Loading capacity: up to 2,300 kg (PWR series)
• Pay-off speed: up to 7.0 m/s (PWR series)
• Tower height: customizable from 5 to 12 meters
• Control: optional motorized synchronization with drawing machine

We configure each pay-off based on your coil dimensions, line speed, and material type. For motorized rotary pay-offs, we integrate the drive control with your existing drawing machine for precise speed matching.

Automation and Integration

Our pay-off machines can be integrated into fully automated lines, with features like snarl stop switches, wire break sensors, and automatic speed synchronization. We work with your control system to ensure seamless communication, whether you use a PLC or a centralized line management system.

For complete plant solutions, we also supply wire drawing machines, take-up coilers, and descaling machines, allowing us to provide a fully coordinated processing line.

Quality Assurance and Compliance

Our equipment is CE certified and protected by multiple utility model patents. We conduct rigorous testing during assembly, including snarl detection calibration and speed synchronization checks. Each machine is test-run before shipment to ensure it meets your specifications.

Installation, Maintenance, and Support

We provide installation supervision and operator training as part of our global service commitment. Our spare parts network ensures quick availability, and our technical team offers remote support for troubleshooting. Regular maintenance is simplified with accessible components and clear documentation.

Information We Use to Configure Your Solution

To prepare a precise proposal, we need the following project data:

• Wire material (low/medium/high carbon, stainless, etc.)
• Wire diameter range (inlet and outlet)
• Coil weight and dimensions (inner/outer diameter, height)
• Required pay-off speed (m/s)
• Line configuration (drawing machine model, descaling unit, etc.)
• Available floor space and overhead clearance
• Power supply and control interface requirements
• Any special environmental conditions (temperature, humidity, etc.)

With this information, we can recommend the optimal model and configuration, including optional features like motorized drives or custom tower heights.

Frequently Asked Questions

What is the maximum coil weight your pay-off machines can handle?

Our PWR series overhead towers support loading capacities up to 2,300 kg. For other models, the capacity varies based on the design; we can customize to handle heavier coils if needed.

Can your pay-off machines be synchronized with existing wire drawing machines?

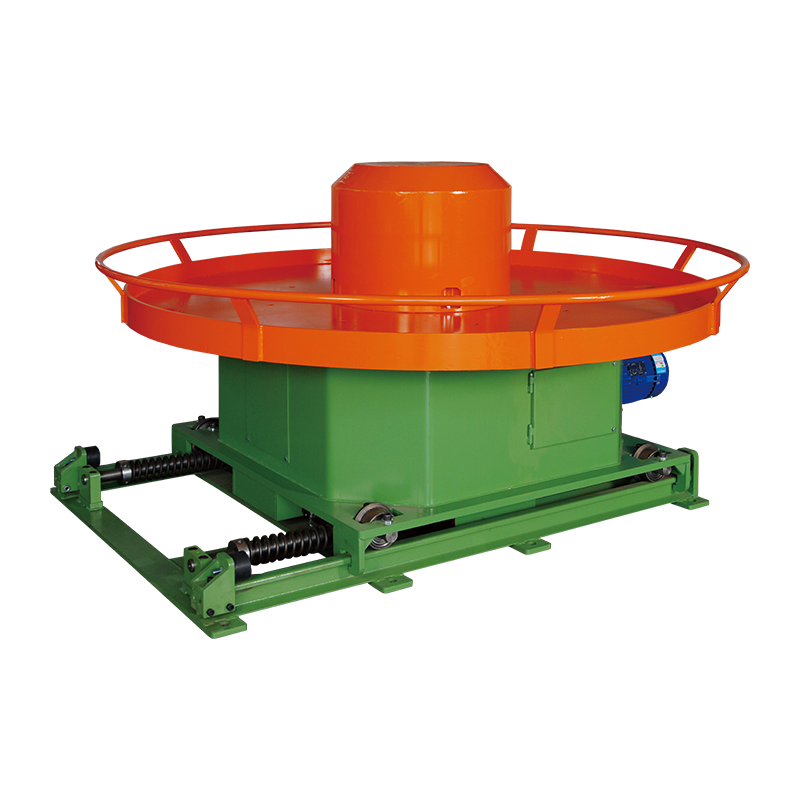

Yes, our motorized rotary pay-off models are designed to synchronize speed with your drawing machine. We can integrate the control signals to ensure smooth operation.

Do you offer custom tower heights for overhead pay-offs?

Absolutely. Our PWR series towers can be customized from 5 to 12 meters, or as per your specific requirements. We design the structure to suit your facility's clearance.

How do you prevent wire snarls and breaks?

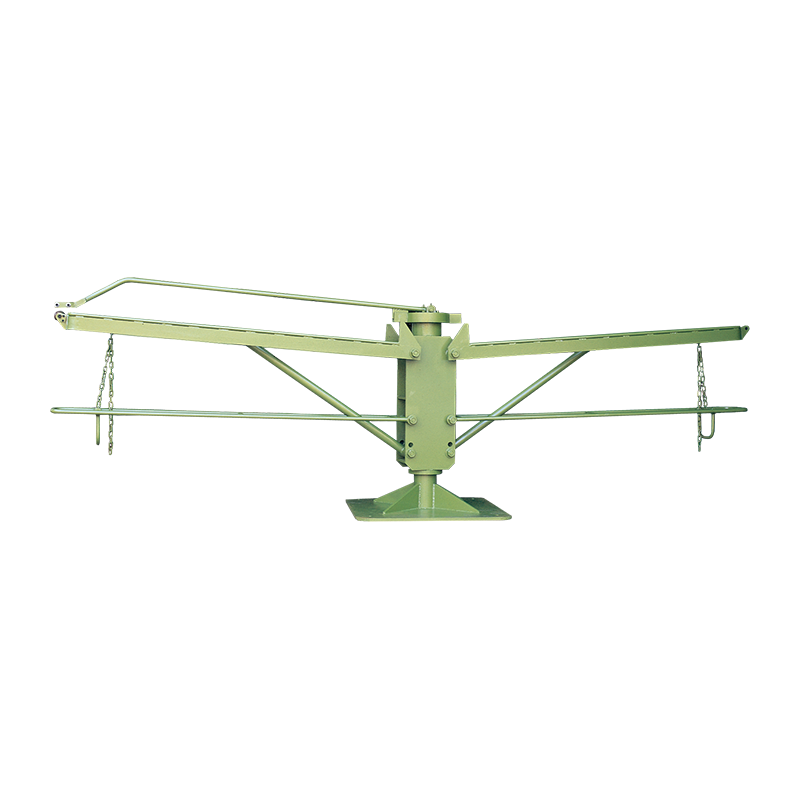

Our pay-off machines include a wire guide cage that acts as a snarl detector, and we offer snarl stop switches as an additional safety feature. These systems immediately halt the line to prevent damage.

What after-sales support do you provide?

We offer installation supervision, operator training, and a global spare parts network. Our technical team is available for remote troubleshooting, and we provide comprehensive documentation for maintenance.

Explore our full range of Pay-Off Machine solutions or view our complete Products lineup. For a tailored proposal, contact our sales and engineering team with your project details.
