Take-Up Coiler Manufacturer & Supplier

As a professional Take-Up Coiler manufacturer and supplier, CHENG I Wire Machinery Co., Ltd. provides a complete range of coiling solutions for wire processing lines. With over 50 years of engineering expertise, we design and build high-speed coilers, drawing coilers, and horizontal spoolers that ensure precise winding, constant tension, and reliable continuous operation. Our equipment serves industries such as fasteners, automotive, aerospace, steel cord, and spring wire manufacturing.

Our take-up coilers are engineered for integration with wire drawing machines, descaling lines, and pay-off systems, offering a one-stop solution for your entire wire processing plant. We support projects from single machines to complete factory planning, backed by CE certification and multiple utility model patents.

Our Take-Up Coiler Range

We offer four main types of take-up coilers, each designed for specific applications and wire specifications. The table below summarizes the key features and typical uses of each model.

Application Fit & Material Considerations

Our take-up coilers are designed to handle a wide range of wire materials, including low, medium, and high carbon steel, stainless steel, and non-ferrous alloys. The choice of coiler depends on the wire diameter, line speed, and downstream requirements.

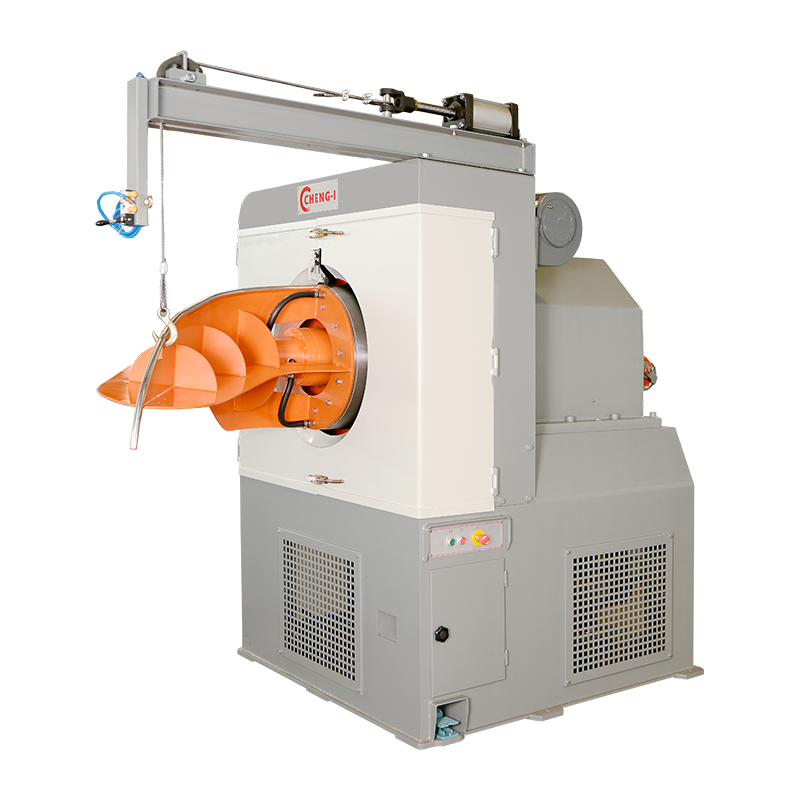

• High Speed Coilers are ideal for high-volume production of wire for fasteners, nails, and general hardware. They offer fast coiling speeds and robust construction for continuous operation.

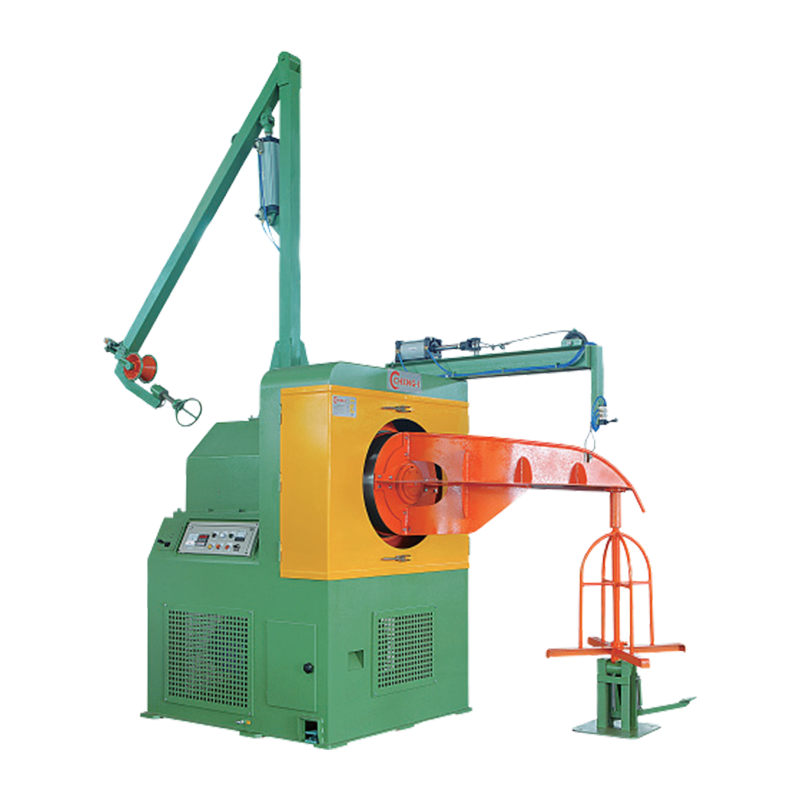

• Drawing Coilers are specifically designed for skin-pass drafting, where precise tension control is critical to maintain wire quality. They are often used in CHQ wire production.

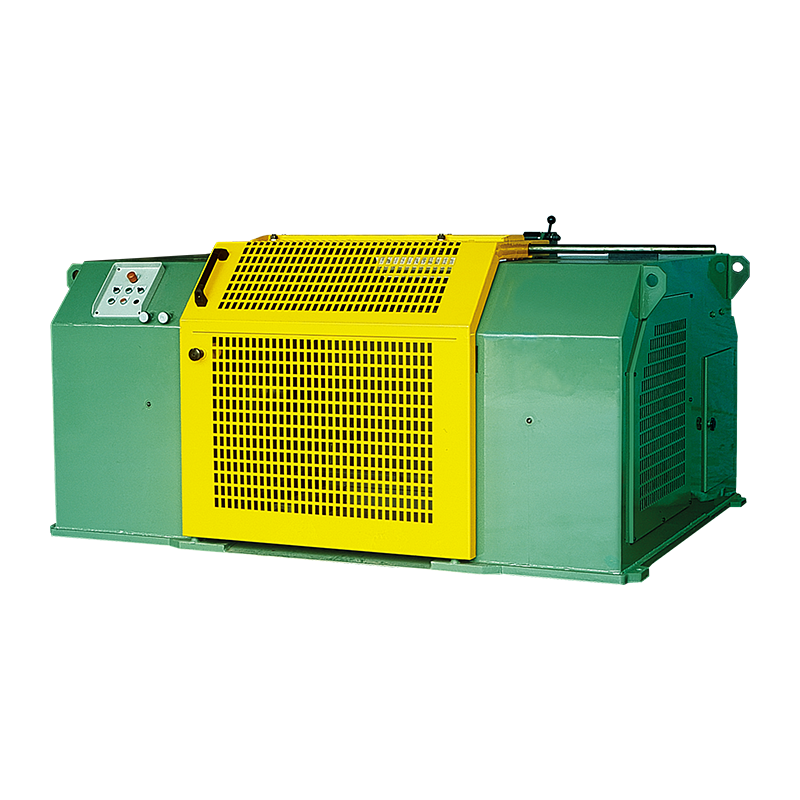

• Horizontal Spoolers are preferred when wire needs to be wound onto spools for easy handling and downstream processing. They are suitable for stainless steel and alloy wires that require careful surface protection.

Critical Specifications & Configuration Options

We configure each take-up coiler based on your specific requirements. Key specifications include capstan size, wire diameter range, coiling speed, and spool dimensions. Our engineering team works with you to determine the optimal configuration for your line.

For example, our High Speed Coilers are available with capstan sizes from 300 mm to 900 mm, with optional drawing capability for in-line reduction. The Spooler-Horizontal can be customized to handle spools with flange diameters from 200 mm to 1,800 mm, and capacities up to 3,000 kg.

Controls & Automation Integration

Our take-up coilers feature advanced electronic control systems that ensure constant tension and precise traversing. This is essential for producing tightly wound coils without overlapping or gaps, which can cause problems in downstream processes.

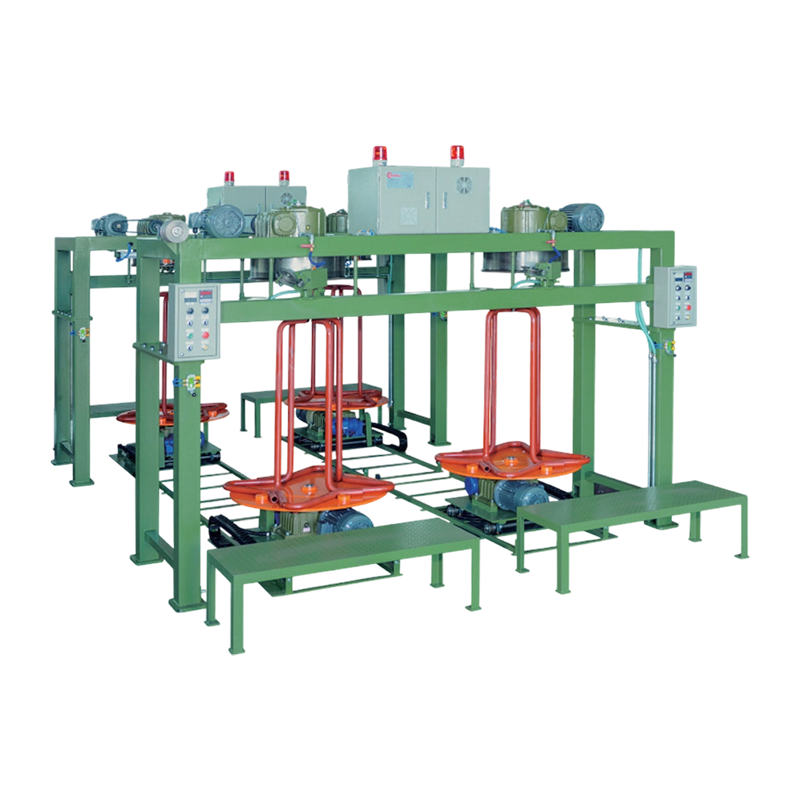

We integrate our coilers with your existing line controls, allowing for synchronized operation with wire drawing machines and pay-off systems. For multi-station systems, we provide automated transfer mechanisms to minimize downtime during coil changes.

Quality Assurance & Acceptance Testing

Every take-up coiler is manufactured in our factory in Guangde, Anhui Province, China, under strict quality control procedures. We conduct thorough testing before shipment, including mechanical run-in, electrical checks, and performance verification.

Our equipment is CE certified, ensuring compliance with EU safety, health, and environmental standards. We also hold multiple utility model patents that protect our innovative designs, such as the tungsten carbide-coated capstan wear surfaces for extended service life.

Maintenance, Spare Parts & Service

We provide comprehensive documentation, including operation manuals and maintenance schedules, with every machine. Our global service network ensures that spare parts are available when you need them, and our technical team is available for remote support and on-site commissioning.

We recommend regular inspection of the capstan wear surfaces, traversing mechanism, and tension control system to maintain optimal performance. Our after-sales service includes training for your operators and maintenance staff.

Information We Use to Configure Your Solution

To prepare a precise proposal and quotation, we need the following information from you:

• Wire material and tensile strength (e.g., low carbon, high carbon, stainless steel)
• Wire diameter range (inlet and outlet)
• Maximum line speed (m/min)
• Required coil or spool dimensions and weight
• Whether drawing capability is needed (for skin-pass drafting)
• Integration requirements with existing equipment
• Environmental conditions (e.g., ambient temperature, humidity)

With this data, our engineering team can recommend the most suitable model and configuration, ensuring optimal performance and efficiency for your specific application.

Frequently Asked Questions

What is the difference between a coiler and a spooler?

A coiler winds wire into a coil (typically without a spool), while a spooler winds wire onto a spool or reel. Coilers are often used for large-diameter wire or when the wire will be further processed, while spoolers are preferred for smaller diameters and when the wire needs to be handled easily.

Can your take-up coilers be integrated with existing wire drawing machines?

Yes, our coilers are designed for seamless integration with wire drawing machines and other line equipment. We provide control interfaces and synchronization features to ensure smooth operation.

What is the maximum wire diameter you can handle?

Our high-speed coilers can handle wire up to 6.0 mm, while our drawing coilers handle up to 5.5 mm. For larger diameters, we can customize solutions based on your requirements.

Do you provide installation and commissioning support?

Yes, we offer on-site installation and commissioning services, as well as training for your operators. Our team ensures that the equipment is set up correctly and running at optimal performance.

What is the typical lead time for a take-up coiler?

Lead times vary depending on the model and customization level. Standard models are typically available within 60-90 days, while custom solutions may take longer. We provide a confirmed delivery schedule with your quotation.
