WIRE DRAWING MACHINE

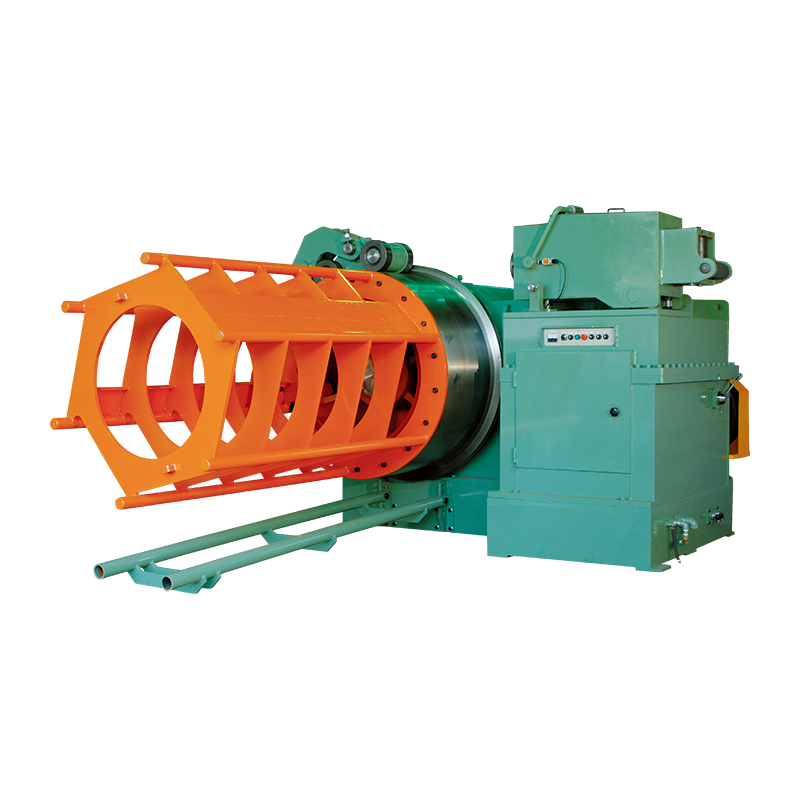

Horizontal Type Wire Drawing Machine

Name: Horizontal Type Wire Drawing Machine
Rating: 5 (99 reviews)

Single-draft wire drawing machine.

Developed for heavy wires. Capable of drawing all type of ferrous and alloy wires.

Wire working range up to 50 mm.

Capstans from 1050 to 1500 mm.

Block pull from 200,000 N to 500,000 N.

Direct water-cooled drawing die.

Two-speed gearbox for the perfect balance of speed performance and production process.

Water-cooled drawing die.

Optional accessories are available to help with the production process.

- Integrated wire pay-off, pre-straightening and feeding unit.

- Integrated shaving-pointing machine.

PREV: Inverted Vertical Capstan Wire Rolling Machine | NEXT:No next product
Contact Us

Product Parameters

Model	HWD-1050	HWD-1300	HWD-1500
Wire range	20~30mm	20~36mm	30~50mm
Capstan	1050mm	1300mm	1500mm

Horizontal Type
Wire Drawing Machine

PREMIUM WIRE EQUIPMENT, POWERING ADVANCED MANUFACTURING

WHO WE ARE

ABOUT US

01 One-stop Equipment Solutions

We provide a full range of metal wire processing equipment from single machines to complete factory planning, serving industries such as fasteners, automotive, aerospace, and more, helping enterprises achieve efficient automation upgrades.

02 Precision. Durability. Results.

With advanced electronic control systems, precision assembly, and strict quality control, we ensure high performance and stability of our equipment, earning long-term trust through professional expertise and service as a China trusted Horizontal Type Wire Drawing Machine Manufacturers & Company.

ABOUT US

Your Safe Choice in Wire Machinery

CE & Patent Certified

CHENG I Wire Machinery Co., Ltd. holds CE certification and multiple utility model patents. CE ensures our equipment meets EU safety, health and environmental standards; our patents protect our innovative designs and technical improvements. These certifications give you reliable, safe, and durable equipment.
